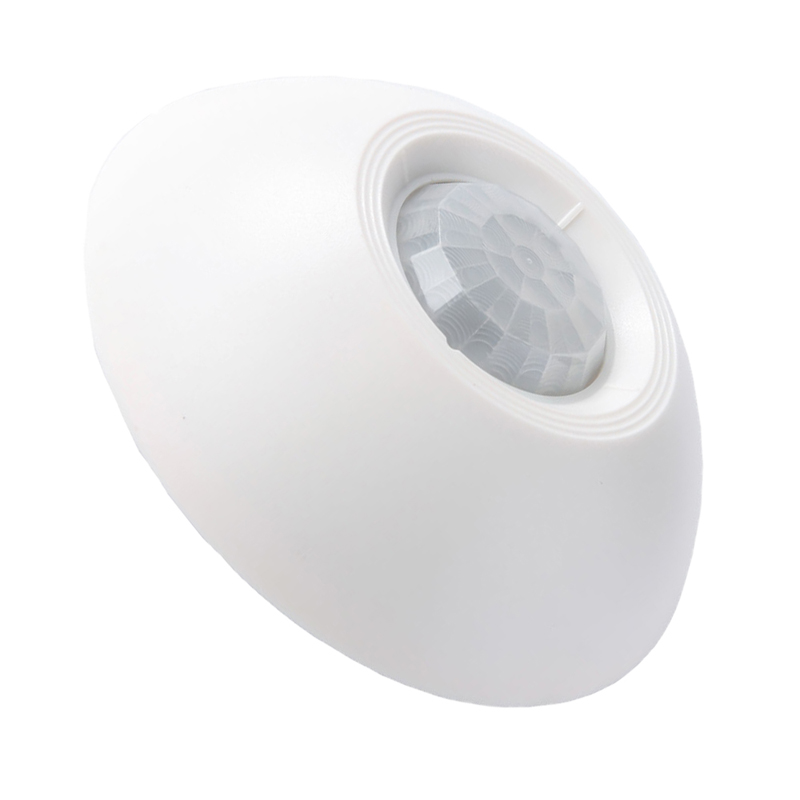

Ⅰ.Product DescriptionsDual-element passive infrared detector works based on detecting the infrared spectrum of the human body. When the human body is moving within its receiving range, the sensor receives its heat source signal, which is amplified and input to the microprocessor. The microprocessor continuously samples the infrared signal and outputs the signal after calculation to control the detector's alarm port. Can be used for smart home, smart security, smart detection, etc. |
Ⅱ. Smart Motion Sensor Applications
|
Ⅲ. PIR Wired Motion Detector Features
|
Item No
|
OM/813W
|
---|---|
Working Current
|
20mA
|
Working Temp.
|
-10°C~50°C
|
Detection range
|
Diameter 6m (H3.6m)
|
Alarm delay
|
30s.10s.5s
|
Sensor
|
Dual noise floor Python-infrared sensor
|
Installation
|
Ceiling mounted
|
Working Voltage
|
DC9-12V
|
Dimension
|
Diameter1 18mm * Thick 35mm
|
